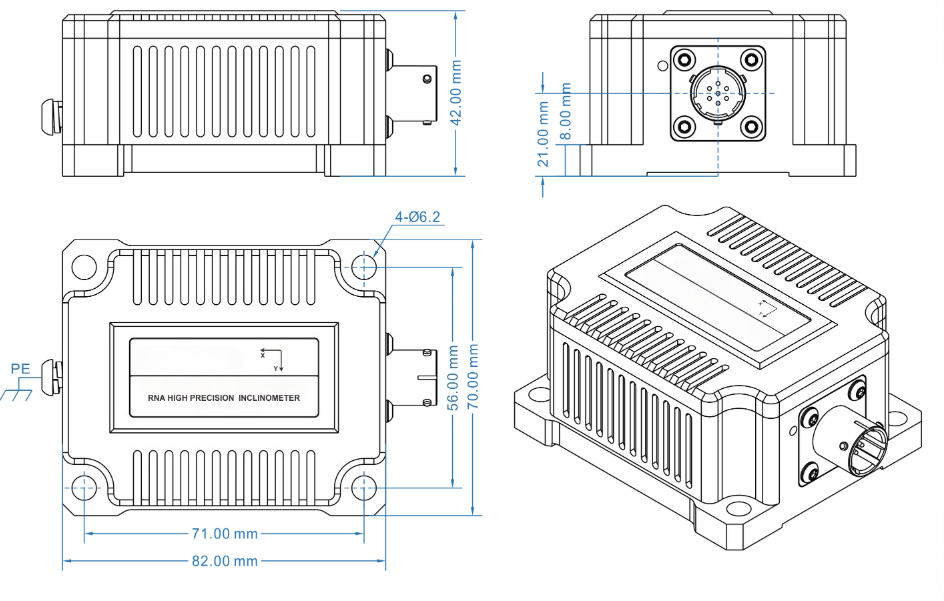

1.Measurement Performance Measuring Axis: RNA816T single-axis; RNA826T dual-axis (Pitch & Roll) Measuring Range: Optional ±10°, ±30°, ±60°, ±90° Resolution: 0.001° Static Accuracy: ±0.02° (@25℃) Temperature Drift: ±0.008°/℃ (-40℃ ~ +85℃) Response Time: Adjustable 0.1s~10s Shock & Vibration Resistance Shock Resistance: 50g triaxial instantaneous impact Vibration Resistance: 5grms (10~1000Hz) Electrical & Environmental Parameters Power Supply: DC 9~36V wide voltage Output Interface: RS485 Modbus-RTU / CAN2.0 optional Protection Grade: IP67, IP68 customizable Working Temperature: -40℃ ~ +85℃ Housing: Oxidized aluminum alloy, anti-corrosion MTBF: ≥100000 hours EMC Standard: EN61000 2.Core Functions & Advantages Ultra-high static precision for static leveling and deformation monitoring Full temperature compensation, tiny zero drift under wide temperature changes Single/dual axis optional to match different measurement demands Compact integrated structure, easy installation on various equipment Multiple industrial bus signals, compatible with PLC and industrial control units Factory calibrated, ready to use without secondary adjustment 3.Structural Features RNA816T single M12 connector for single-point measurement; RNA826T single M12 connector for dual-axis simultaneous tilt detection. Integrated fully sealed aluminum shell, dustproof and waterproof, suitable for fixed installation on metal brackets outdoors. 4.Application Fields Widely used for bridge deformation monitoring, building inclination detection, solar tracking, hydraulic platform leveling, crane tower inclination monitoring, dam safety monitoring and automation equipment static angle control.
