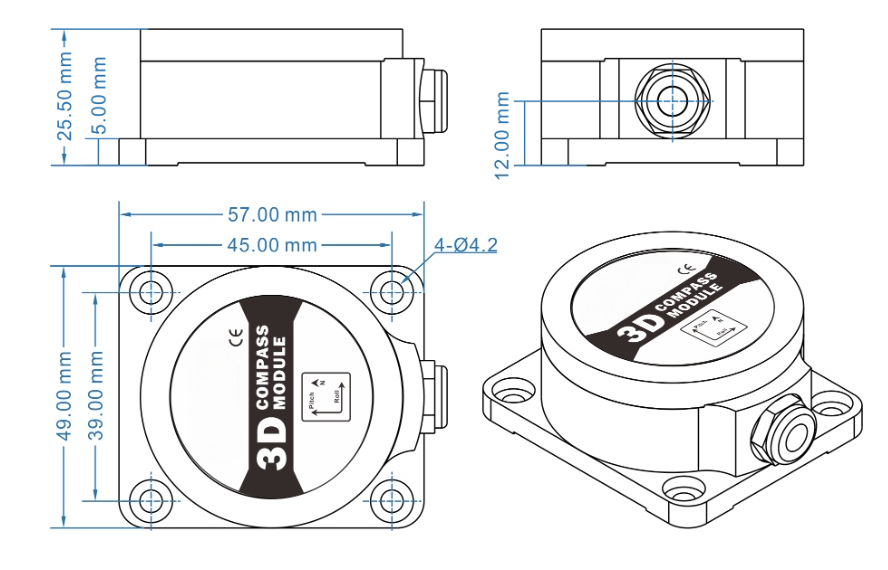

1.Measurement Performance Output Data: Heading, Pitch, Roll Heading Accuracy: ±0.3° after magnetic compensation Tilt Accuracy: ±0.05° Measuring Range: Heading 0°~360°, Pitch & Roll ±90° Resolution: 0.01° Adjustable Update Rate: 1Hz ~ 20Hz Shock & Vibration Resistance Shock Resistance: 50g triaxial instantaneous impact Vibration Resistance: 5grms, 10~1000Hz full frequency band 2.Electrical & Environmental Parameters Power Supply: DC 3.3V / 5V optional Communication Interface: TTL / RS485 Modbus-RTU Protection Grade: IP54 integrated plastic enclosure Operating Temperature: -40℃ ~ +85℃ EMC Compliance: EN61000 industrial electromagnetic standard 3.Core Functions & Advantages Ultra-high static precision for both heading and tilt measurement Built-in one-click automatic magnetic compensation to eliminate metal magnetic distortion Integrated sealed plastic housing for direct mounting, no extra casing machining required High adjustable refresh rate supports real-time fast attitude tracking Low power consumption, perfectly matches battery-powered portable devices Standard lead wire outlet design, easy wiring to connect various industrial controllers and displays 4.Structural Features Compact all-in-one plastic enclosure with built-in PCB sensing module and external lead wires. Independent isolated magnetic sensing area separates from power circuits to avoid electromagnetic crosstalk. Small overall dimension fits installation on marine equipment, precision survey instruments and engineering vehicles. 5.Application Fields High-precision mapping & surveying instruments, marine vessel heading and attitude monitoring, UAV navigation, bridge and building deformation detection, portable geological positioning terminals, satellite antenna automatic tracking systems, outdoor high-end orientation measuring equipment
