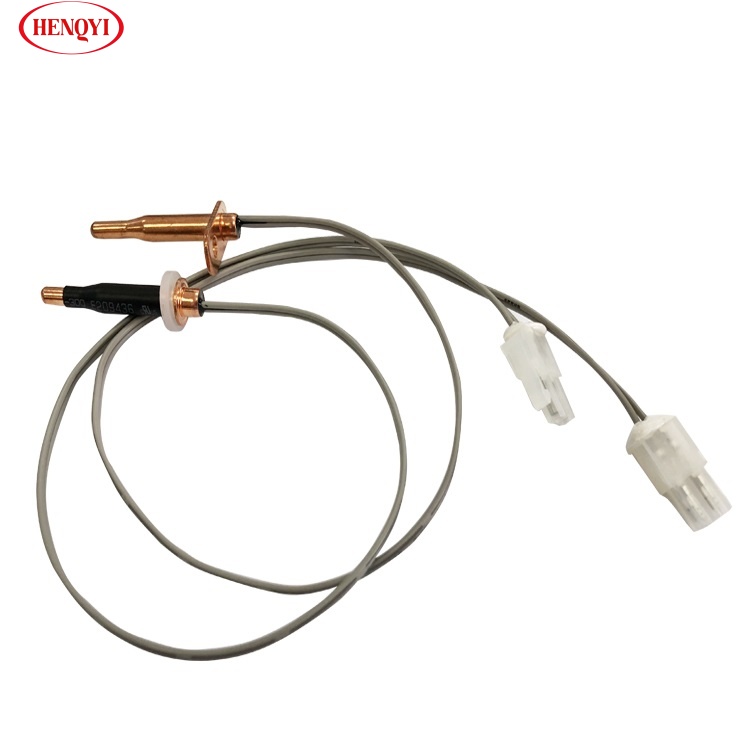

Copper case temperature sensor for smart toilet
| 1.Thermal reaction time: | ≤3 seconds in water bath |
| 2.Dissipation factor: | about 1.8mW /℃ in standing air |
| 3.Withstand voltage test: | 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| 4.Insulation test: | 100MΩ or more |
| 5.Rated power: | ≤2mW |
| 6.Operating temperature range: | -30℃～105℃ |
Product Description
HTS series metal bullet shell NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control. Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- Fast action speed and high sensitivity
- High precision both resistance value and B value
- Good consistency and interchangeability
- Adopt double‑layer sealing process
- Glass encapsulated thermistor
- Anti‑bending, good stability and high reliability
- Accept customization.
Applications:
- Smart toilet, toilet seat
- Coffee maker, microwave oven
- Rice cooker, oven, water heater, heater, freezer
- Water dispenser, disinfection cabinet, washing machine, soybean milk machine, air conditioner, frequency converter, induction cooker
- Smart home
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R40=26.06KΩ±3.4% B(0/100)=3970K±2% |
| 2 | Casing | φ4xφ6x38+10x22 |
| 3 | Lead wire | UL2651#24AWG TS grey |
| 4 | Sealant | White softening temperature of hot melt adhesive |
| 5 | Connector | Molex, Translucent fog color |

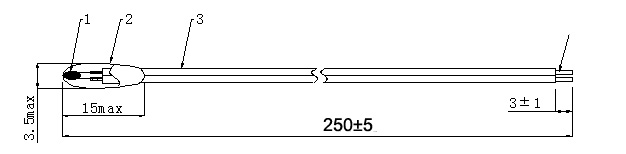

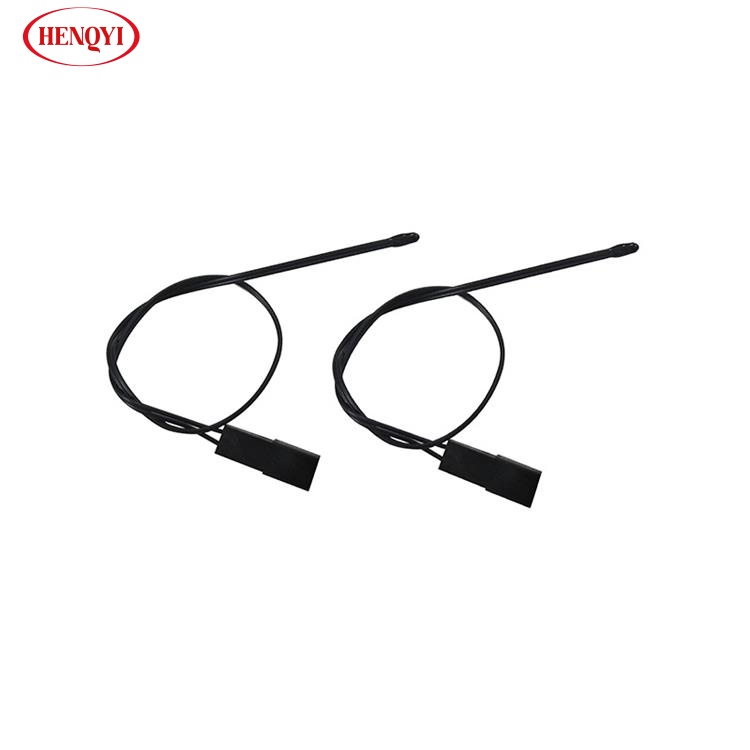

Epoxy encapsulated thermistor for smart toilet lid
| 1.Thermal reaction time: | ≤10 seconds in water bath |
| 2.Dissipation factor: | about 2.6mW/°C in standing air |
| 3.Withstand voltage test: | AC 1000V 2mA 3 seconds |
| 4.Insulation test: | DC 500V or 100MΩ |
| 5.Rated power: | ≤10mW |
| 6.Operating temperature range: | -30℃～100℃ |
Product Description
HTS series water drop epoxy encapsulated NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- Stable performance and high reliability
- Small size and quick response
- High sensitivity
- Good heat resisting circulation
- Be easy to install
- Good insulation and sealing, anti‑mechanical collision
Applications:
- Smart toilet lid
- Smart toilet
- Air temperature
- Household appliances, computers
- Battery pack, battery pack
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1% B(25/85)=3950K±3% |
| 2 | Epoxy Size | 3.0mm±1 |
| 3 | Lead wire | UL2651#24AWG grey |

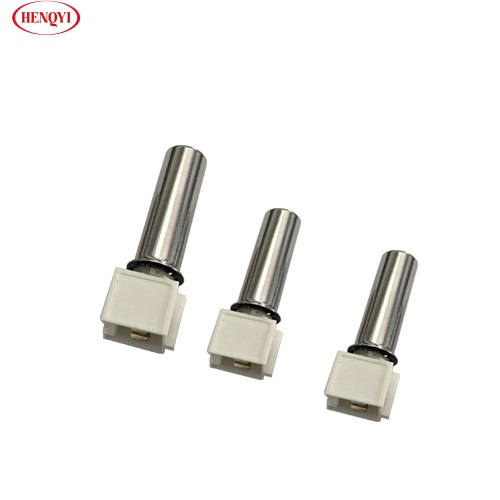

Specialized temperature sensor for smart toilet lip
| 1.Thermal reaction time: | ≤16 seconds in water bath |
| 2.Dissipation factor: | about 2.6mW/°C in standing air |
| 3.Withstand voltage test: | AC 1300V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| 4.Insulation test: | ≥100MΩ |
| 5.Rated power: | ≤10mW |
| 6.Operating temperature range: | -30℃～105℃ |
Product Description
HTS series straight stainless steel tube NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- Good waterproof property
- High accuracy of temperature measurement
- Good stability
- Quick response and good insulation
- Wide temperature range
Applications:
- Smart toilet lip
- Toilet seat washer
- Household appliances, rice cookers, heaters, cars, electric cars, soybean milk machine, coffee maker
- Combustion machine, dishwasher, disinfection machine, washing machine, automobile temperature control system, medical equipment, new temperature measurement, communication equipment
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1% B(25/85)=3950K±3% |
| 2 | Casing | φ5xφ50+φ6.6x0.5 SUS304 |
| 3 | Rubber Ring | φ8x2 black rubber ring |
| 4 | Lead wire | UL2651#26AWG GREY |
| 5 | Connector | XH‑T |

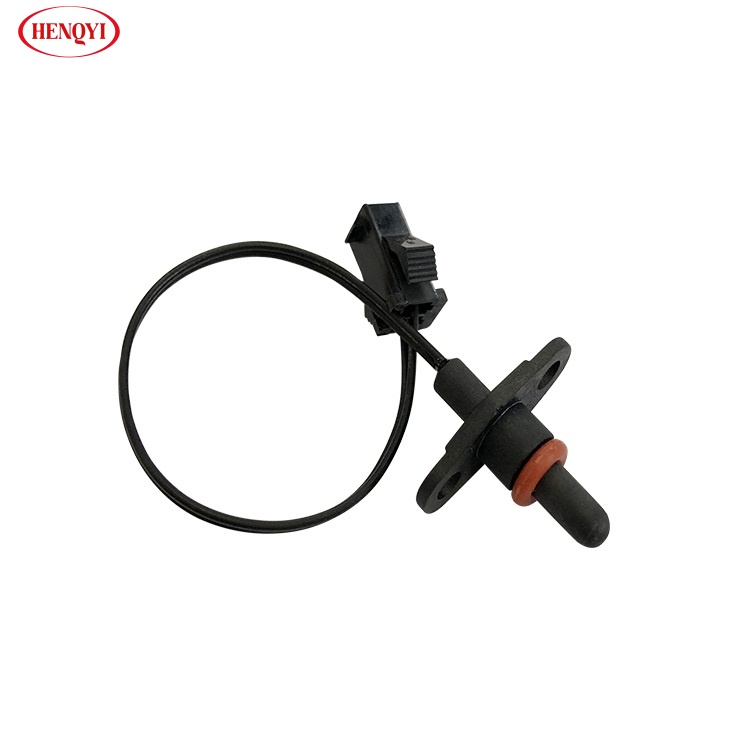

Temperature sensor for customized dishwasher
| 1.Thermal reaction time: | max 12 seconds in water bath |
| 2.Dissipation factor: | about 2.6mW/°C in standing air |
| 3.Withstand voltage test: | AC 1800V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| 4.Insulation test: | DC 500V, in the steel ball ≥100MΩ |
| 5.Rated power(Maximum rated power consumption): | 10mW |
| 6.Operating temperature range: | -30℃～105℃ |
Product Description
HTS series plastic case NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- Good water proofing property
- High precision,high reliability
- Stable property
- Accept customization
Applications:
- Household appliances, dish‑washing
- Rice cooker, oven, water heater, heater
- Temperature measurement for environmental monitoring instrument
- Freezer, water dispenser, disinfection cabinet, washing machine, soybean milk machine
- Air conditioning, frequency converter, induction cooker, microwave oven, washing machine, fan
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1% B(25/85)=3435K±3% |
| 2 | Rubber Ring | φ7*φ3*2 red |
| 3 | Casing | PPS φ4.0*23+15*10 black |
| 4 | Lead wire | UL4469#26AWG black |
| 5 | Terminal | SM‑YT |
| 6 | Connector | SM‑2Y black |

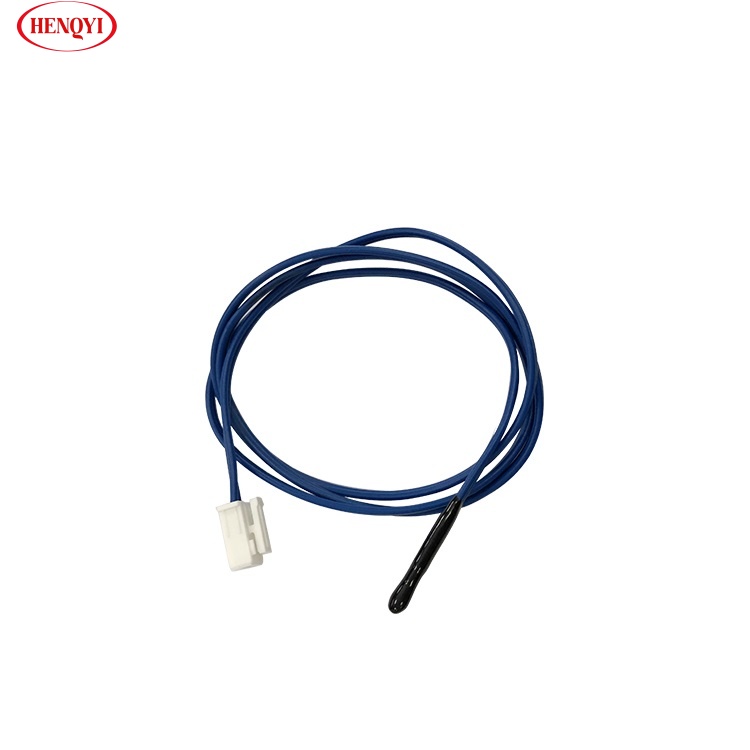

Epoxy encapsulated thermistor for smart toilet
| 1.Thermal reaction time: | ≤12 seconds in water bath |
| 2.Dissipation factor: | about 2.0mW/°C in standing air |
| 3.Withstand voltage test: | AC 2100V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| 4.Insulation test: | ≥100MΩ |
| 5.Rated power: | ≤10mW |
| 6.Operating temperature range: | -30℃～105℃ |
Product Description
HTS series epoxy encapsulated type NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- The temperature sensor of thermistor is encapsulated with epoxy‑sealed glass
- Temperature sensors can be used for control and anomaly monitoring
- High accuracy both resistance value and B value,good consistency and interchangeable
- Good insulation, high reliability, quick response
- Double‑layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability
- Can work stably for a long time (annual resistance drift rate ≤1‰)
Applications:
- Air conditioning temperature measurement, air conditioning room temperature, outside temperature measurement
- Smart toilet lid temperature measurement
- Electronic temperature and humidity meter, automobile temperature measurement, electronic calendar, rechargeable battery pack, wireless charger
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=50KΩ±1% B(25/50)=3950K±1% |
| 2 | Lead wire | UL2651#24AWG Blue |
| 3 | Connector | SIMH‑Y white |
| Resistance Value R25:KΩ | B Value | Rated power (mW) | Dissipation factor (mW/℃) | Thermal time constant (s) |
|---|---|---|---|---|
| 10 | 3435 | 10‑20 | 2‑4 | ≤3‑6 |
| 10 | 3450 | |||
| 10 | 3470 | |||
| 20 | 3743 | |||
| 50 | 3950 | |||
| 100 | 4520 |

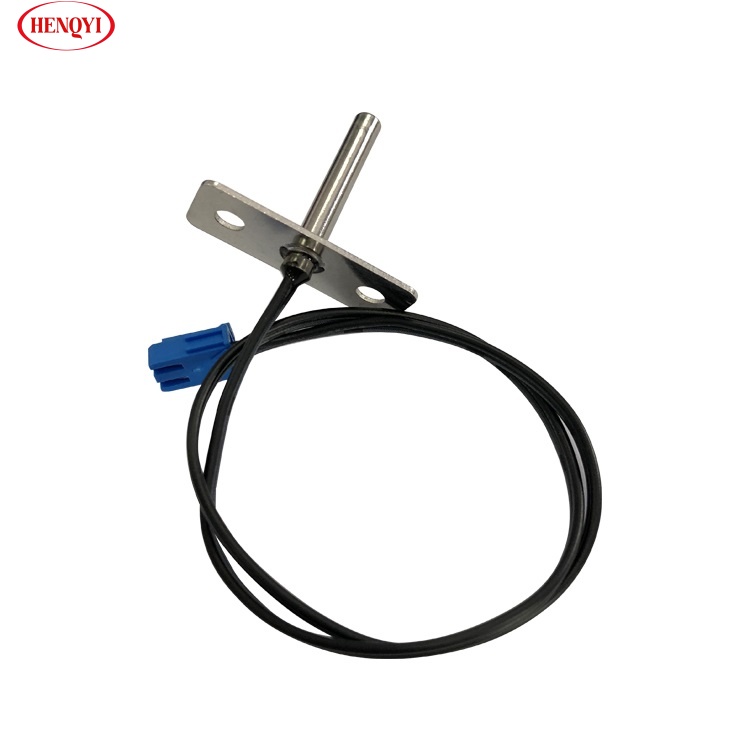

Flange shell NTC temperature sensor for smart toilet
| Thermal reaction time | max 12 seconds in water bath |
| Dissipation factor | about 2.8mW/℃ in standing air |
| Withstand voltage test | AC 1800V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| Insulation test | ≥100MΩ |
| Rated power | 2mW |
| Operating temperature range | -20℃～105℃ |
Product Description
HTS series stainless steel flange type NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire. It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Product Features
Features:
- Flange stainless steel shell
- Wide range of resistance values:1KΩ~500KΩ
- High accuracy both resistance value and B value
- High accuracy and good reliability
- Small size, fast response
- Can work stably for a long time with good consistency
Applications:
- Smart toilet, toilet lip
- Microwave oven, washer and dryer, dish‑washing
- Small appliances‑bread maker, blunger, hair dryer, curling iron, shower, air conditioner, stove, refrigerator
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1% B(25/85)=3435K±3% |
| 2 | Shell | φ4*28+12*30 SS304 |
| 3 | Lead wire | UL2651#26AWG black |
| 4 | Terminal | YS T 025 |
| 5 | Connector | SMH250‑02‑BL BLUE |
Ordering Instructions:
Please inform the following parameters when ordering NTC temperature sensor:
- Resistance value requirements (can be selected according to the above table)
- B value requirements (can be selected according to the above table)
- Working environment (whether waterproof, moisture‑proof, cold and other requirements )
- Application: different usage has different temperature resistant wire and different resistance value
- Operating temperature range
- Accuracy requirement (1%‑5% optional)
- Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
- Customized shell dimensions is welcome
- Customized wire rod and length is welcome
- If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confirm before ordering. Customized parameters and dimensions is welcome.
For drum-drying washing machine
Epoxy resin encapsulated NTC thermistor
NTC temperature sensor for smart toilet
RT table of conventional resistance values
| R T | 2.252KΩ EQ B25/50:3936A B25/85:3950B |
5KΩ IM B25/50:3270A B25/85:3418B |
5KΩ IM B25/50:3950A B25/85:3981B |
10KΩ IQ B25/50:3383A B25/85:3435B |
10KΩ EQ B25/50:3913A B25/85:3977B |
10KΩ EQ B25/50:3950A B25/85:4017B |
50KΩ EQ B25/50:3950A B25/85:4050B |
100KΩ GI B25/50:3950A B25/85:3997B |
100KΩ GI B25/50:4100AI B25/85:4149BI |
|---|---|---|---|---|---|---|---|---|---|
| -40 | 76.757 | 89.527 | 166.488 | 205.516 | 284.362 | 299.347 | 1668.539 | 3263.032 | 3724.780 |
| -35 | 55.198 | 67.552 | 120.216 | 154.902 | 207.765 | 218.546 | 1208.617 | 2365.035 | 2666.911 |
| -30 | 40.169 | 51.596 | 87.803 | 117.957 | 153.558 | 161.297 | 884.941 | 1733.109 | 1931.390 |
| -25 | 29.562 | 39.864 | 64.823 | 90.693 | 114.728 | 120.266 | 654.531 | 1283.211 | 1413.792 |
| -20 | 21.985 | 31.133 | 48.343 | 70.366 | 86.594 | 90.537 | 488.738 | 959.375 | 1045.392 |
| -15 | 16.504 | 24.894 | 36.348 | 54.994 | 66.328 | 69.111 | 367.390 | 723.658 | 780.142 |
| -10 | 12.508 | 20.020 | 27.587 | 43.343 | 51.191 | 53.134 | 278.692 | 550.628 | 587.479 |
| -5 | 9.565 | 16.189 | 21.123 | 34.433 | 39.793 | 41.128 | 213.231 | 422.427 | 446.184 |
| 0 | 7.377 | 13.159 | 16.310 | 27.561 | 31.143 | 32.038 | 164.474 | 326.601 | 341.615 |
| 5 | 5.730 | 10.724 | 12.688 | 22.220 | 24.537 | 25.056 | 127.638 | 253.987 | 263.138 |
| 10 | 4.487 | 8.791 | 9.947 | 18.034 | 19.446 | 19.729 | 99.859 | 199.056 | 204.329 |
| 15 | 3.540 | 7.246 | 7.855 | 14.729 | 15.498 | 15.636 | 78.728 | 157.158 | 159.879 |
| 20 | 2.814 | 6.004 | 6.247 | 12.102 | 12.418 | 12.468 | 62.524 | 124.948 | 126.009 |
| 25 | 2.252 | 5.000 | 5.000 | 10.000 | 10.000 | 10.000 | 50.000 | 100.000 | 100.000 |
| 30 | 1.814 | 4.183 | 4.027 | 8.308 | 8.092 | 8.065 | 40.249 | 80.540 | 79.880 |
| 35 | 1.471 | 3.516 | 3.263 | 6.938 | 6.577 | 6.539 | 32.603 | 65.256 | 64.207 |
| 40 | 1.199 | 2.968 | 2.659 | 5.822 | 5.370 | 5.328 | 26.568 | 53.176 | 51.916 |
| 45 | 0.984 | 2.515 | 2.179 | 4.909 | 4.402 | 4.363 | 21.773 | 43.568 | 42.215 |
| 50 | 0.811 | 2.140 | 1.794 | 4.157 | 3.623 | 3.588 | 17.941 | 35.882 | 34.512 |
| 55 | 0.673 | 1.822 | 1.487 | 3.537 | 3.004 | 2.969 | 14.827 | 29.724 | 28.386 |
| 60 | 0.562 | 1.555 | 1.239 | 3.021 | 2.502 | 2.469 | 12.306 | 24.746 | 23.468 |
| 65 | 0.471 | 1.331 | 1.037 | 2.591 | 2.093 | 2.062 | 10.256 | 20.700 | 19.498 |
| 70 | 0.397 | 1.141 | 0.873 | 2.231 | 1.759 | 1.729 | 8.581 | 17.395 | 16.277 |
| 75 | 0.336 | 0.981 | 0.738 | 1.928 | 1.484 | 1.456 | 7.206 | 14.681 | 13.649 |
| 80 | 0.286 | 0.845 | 0.626 | 1.671 | 1.257 | 1.231 | 6.074 | 12.442 | 11.496 |
| 85 | 0.245 | 0.733 | 0.534 | 1.451 | 1.070 | 1.047 | 5.139 | 10.582 | 9.716 |
| 90 | 0.210 | 0.637 | 0.457 | 1.264 | 0.915 | 0.893 | 4.362 | 9.033 | 8.245 |
| 95 | 0.181 | 0.555 | 0.393 | 1.104 | 0.785 | 0.765 | 3.715 | 7.739 | 7.022 |
| 100 | 0.157 | 0.484 | 0.339 | 0.967 | 0.676 | 0.658 | 3.174 | 6.653 | 6.002 |
| 105 | 0.136 | 0.424 | 0.294 | 0.849 | 0.584 | 0.568 | 2.720 | 5.738 | 5.148 |
| 110 | 0.119 | 0.372 | 0.255 | 0.747 | 0.507 | 0.491 | 2.337 | 4.965 | 4.430 |
| 115 | 0.104 | 0.327 | 0.223 | 0.659 | 0.441 | 0.427 | 2.014 | 4.310 | 3.825 |
| 120 | 0.091 | 0.288 | 0.195 | 0.583 | 0.384 | 0.372 | 1.740 | 3.752 | 3.312 |
| 125 | 0.080 | 0.254 | 0.171 | 0.517 | 0.336 | 0.325 | 1.507 | 3.275 | 2.877 |
| 130 | 0.071 | 0.225 | 0.151 | 0.459 | 0.295 | 0.284 | 1.308 | 2.867 | 2.506 |
| 135 | 0.063 | 0.199 | 0.133 | 0.409 | 0.260 | 0.250 | 1.138 | 2.517 | 2.188 |
| 140 | 0.056 | 0.176 | 0.118 | 0.365 | 0.229 | 0.220 | 0.993 | 2.215 | 1.916 |
| 145 | 0.050 | 0.157 | 0.104 | 0.326 | 0.202 | 0.194 | 0.868 | 1.953 | 1.682 |
| 150 | 0.044 | 0.140 | 0.093 | 0.292 | 0.179 | 0.172 | 0.760 | 1.727 | 1.480 |
