HTS-2 Temperature Sensor With High Accuray NTC Thermistor 1.355K 2.252K 10K Manufacturer Price
| Item No : | HTS-2 |
| Resistance Value : | 1K, 5K, 10K, 50K, 100K, 15K |
| Resistance Tolerance : | F±1%,G:±2%, H:±3%,J:±5%,K:±10% |
| B Value 25/50 (K) : | 3950K, 3435K, 3470K, 4000K,4050K |
| Wire Material : | PVC TPE PFA TPE Support Customized |
| Withstand Voltage : | 1500V/AC |
| Temperature Range : | -40~200℃ |
| Probe Material : | metal |
| Certificate : | ISO9001 ROHS REACH ISO14001 IATF16949 |
| Country Of Origin : | China |
Product Description
The HTS-2 series is a precision NTC temperature sensor packaged in aluminum,copper,and stainless-steel shell. The head is a metal cylindrical shape with a single lead and resin potted insulating material.
Product Features
1. Application scope: Application scope: Temperature sensor for air conditioning compressor.
2. Features:
- Good stability and high reliability.
- Wide resistance range and high precision.
- Temperature sensor for oven/microwave oven.
- Small size, light weight, solid structure, easy for automatic installation.
- Fast thermal sensing and high sensitivity.
3. Installation method:
- a) For use, use general soldering methods and install with epoxy resin potting (encapsulation);
- b) For vibration and impact tests, install by clamping the housing and wires.

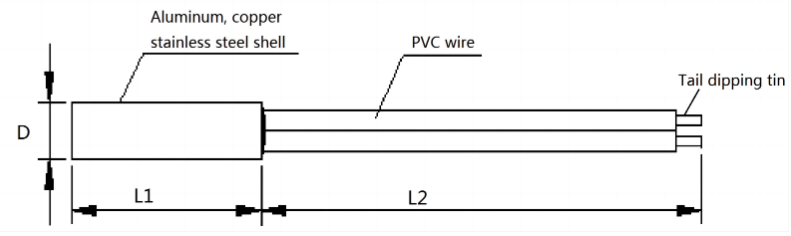

HTS-2 aluminum, copper,stain steel cap
| NO. | D | L1 | L2 |
|---|---|---|---|
| HTS-2 | 4/5/6 | 20/25/30/Customized | Customized |
Part‑number Naming Convention
temperature sensor series
(NTC thermistor P/N)
Precision NTC temperature sensor series
1‑epoxy resin coating
2‑aluminum,copper,stainless steel cap
3‑non‑metal package
4‑fixed sheet metal
5‑special shape
6‑Injection molded package
7‑Ceramic cylinder
@25℃
502‑5K,
103‑10K,
203‑20K,
503‑50k,
104‑100K
F‑±1%, G‑±2%
H‑±3%, J‑±5%
value
3380,
3470,
3600,
3950,
4050,
4150,
F / G / H / J
A‑MF52A, B‑MF58
C‑chip, D‑MF51
E‑MF51E, F‑MF11
G‑MF55, H‑MF52DE
I‑etc.
| HTS-1 | encapsulated with epoxy resin |
| HTS-2 | metal cylindrical |
| HTS-3 | plastic cylindrical |
| HTS-4 | special shape with a metal shell and a fixed metal piece |
| HTS-5 | metal shell, special shape |
| HTS-6 | Injection molded package |
| HTS-7 | Ceramic cylinder |
| Type | NTC Temperature Sensor |
| Resistance | 1K~5M Ω (1k 5k 4.7k 10k 20k 30k 50k 100k 150k 200k 300k Customized) |
| Beta Value | 3380k 3435k 3500k 3950k 4050k 4150k 4250k 4450k Customized |
| Housing | Cooper/Stainless/aluminum/Brass/Plastic/Nylon/Others Customized |
| Wire | 20/22/24/26/28/30/32AWG PP/PVC/PTFE/PFA/TPE/FEP Customized |
| Connector | JST/SYP/MOLEX/DUPONT/TE Customized |
| Installation | Flanged/Surface/Threaded/Plastic/Straight/Film/LUG/SMD/THT Customized |
| Accuracy | 0.1% 0.5% 1% 2% 3% 5% 10% Customized |
| Temperature range | -40~300 Customized |
| Wire Length | 10mm~10000mm Customized |
Ordering Instructions:
Please inform the following parameters when ordering NTC temperature sensor:
- Resistance value requirements (can be selected according to the above table)
- B value requirements (can be selected according to the above table)
- Working environment (whether waterproof, moisture‑proof, cold and other requirements)
- Application: different usage has different temperature resistant wire and different resistance value
- Operating temperature range
- Accuracy requirement (1%‑5% optional)
- Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
- If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products including many parameters and specifications, please confirm before ordering.
Customized parameters and dimensions are welcome.
