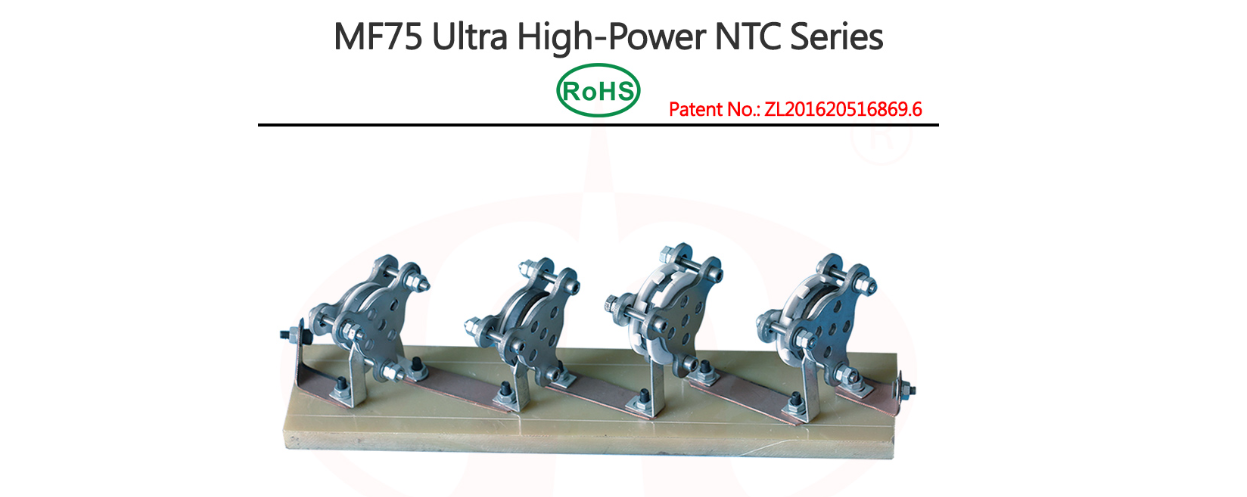

MF75 High Power NTC Thermistor Series
| Item No : | MF75 |
| Zero‑Power Resistance Value(Ω) @25℃ : | 0.2~20 Ω |
| B Value 25/50 (K) : | 2600~3200 K |
| Max Steady Current : | 90 A |
| Temperature Range : | -40~200 ℃ |
| Max Allowable Capacity Value : | 11500 μF |
| Maximum Rated Power : | 55 W |
PRODUCT INTRODUCTION
Product Description
Power type NTC suppresses the surge current at startup. Its zero-power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.
Product Features
1. Application scope:
- Nuclear magnetic resonance equipment, high‑power professional audio amplifier, and high‑power toroidal transformer.
- Solar panel array with large capacity power inverter.
- Industrial robots driven by high‑voltage power supply.
2. Features:
- High power and strong ability to suppress surge current.
- The material constant (B value) is large, the residual resistance is small, and the power consumption is small.
- High current, long life and reliability.
- Easy for circuit board installation, complete series, wide range of applications.
